The dual-shaft shredder VZ 850 developed by our technical director Norbert Hammel, incorporates innovative technologies and decades of experience in the recycling industry into one powerful machine. Due to the hydraulic drive this shredder is suitable for almost any material – even the really big chunks!

Features at a glance

Patented T-blade profile guarantees a precise cutting process (energy savings up to 15%)
Two tilting hoppers for optimal feeding of the material to the tool shafts
Automatic reversing function protects against fracture of the cutting tools
Low noise level due to effective sound insulation and low engine speed
Integrated fine dust filter frees the engine compartment of dust particles
Optional wheel axle with solid rubber tires guarantees unrestricted maneuverability
Low wear and maintenance costs and maintenance friendly modular design

Variants

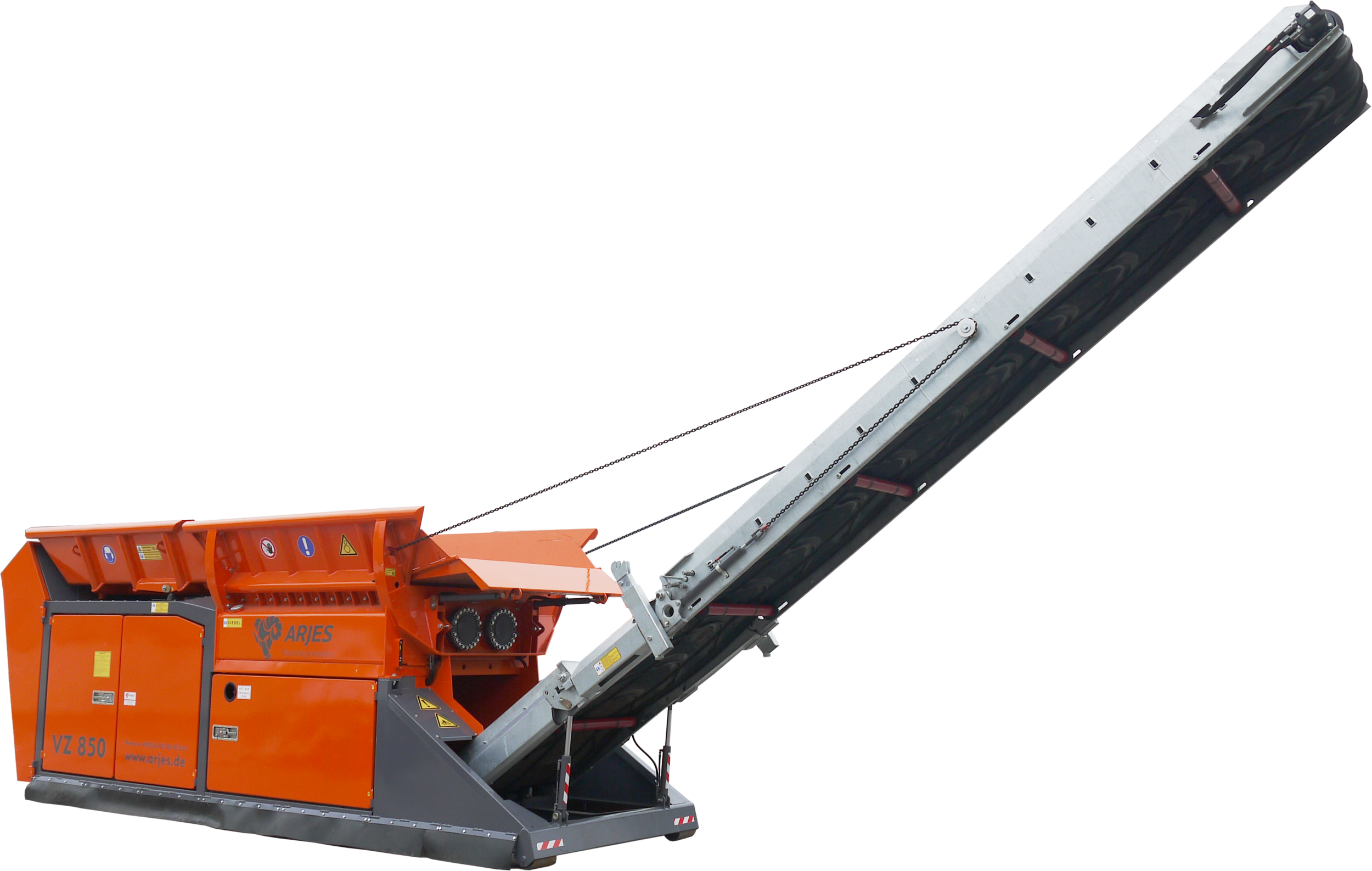

VZ 850 D

Diesel Drive (D) - semi mobile on a hook lift frame with wheel axle for mobility on-site

VZ 850 DK-

Diesel Tracks (DK) - mobile and self propelled, for efficient relocation and use in rough terrain. Can be equipped with optional rubber track pads

VZ 850 E

Electric Drive (E) - for situations where special requirements for exhaust and noise emissions apply. Can also be custom built with remote power pack, shred chamber, infeed, and discharge

Videos

Technical Data

Model	Performance (KW/HP)	Dimensions LxWxH (mm)	Shafts (mm)	Weight (kg)
VZ 850 D	565 kW (768 hp)	8,000 x 2,500 x 2,800	2,000	20,000
VZ 850 DK	565 kW (768 hp)	8,800 x 2,900 x 3,200	2,000	26,000
VZ 850 E	2x 160 kW	8,200 x 2,500 x 2,900	2,000	20,000
