The dual-shaft shredder VZ 750 developed by Norbert Hammel incorporates innovative technologies and decades of experience in the recycling industry into one powerful machine. Due to the hydraulic drive this shredder is suitable for almost any material – even the really big chunks! Different configurations as stationary, semi-mobile and mobile versions round off this attractive overall package!

Features at a glance

Patented T-blade profile guarantees a precise cutting process (energy savings up to 15%)
Two tilting hoppers for optimal feeding of the material to the tool shafts
Automatic reversing function protects against fracture of the cutting tools
Low noise level due to effective sound insulation and low engine speed
Low wear and maintenance costs and maintenance friendly modular design

Variants

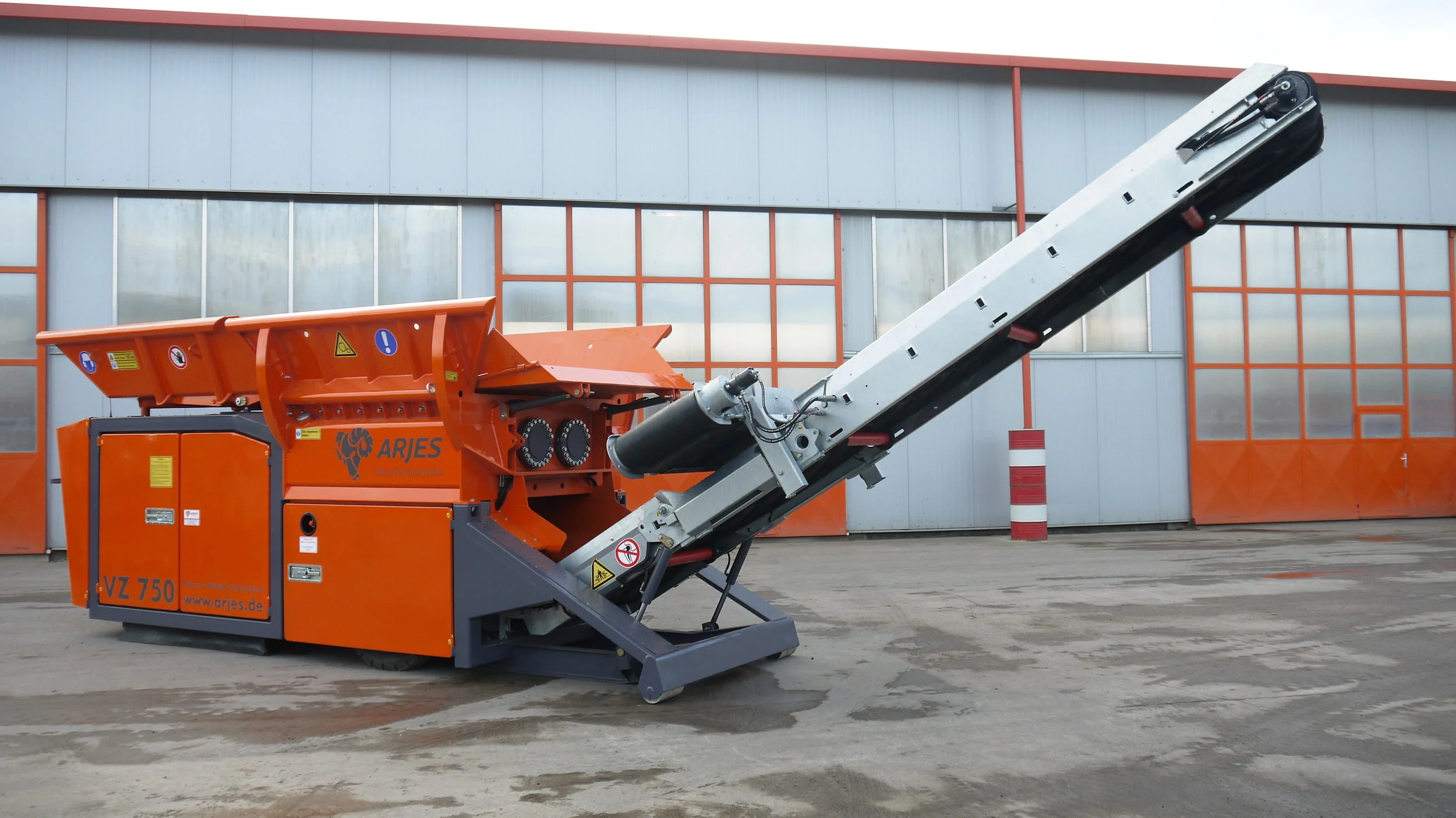

VZ 750 D

Diesel Drive (D) - semi mobile on a hook lift frame with wheel axle for mobility on-site

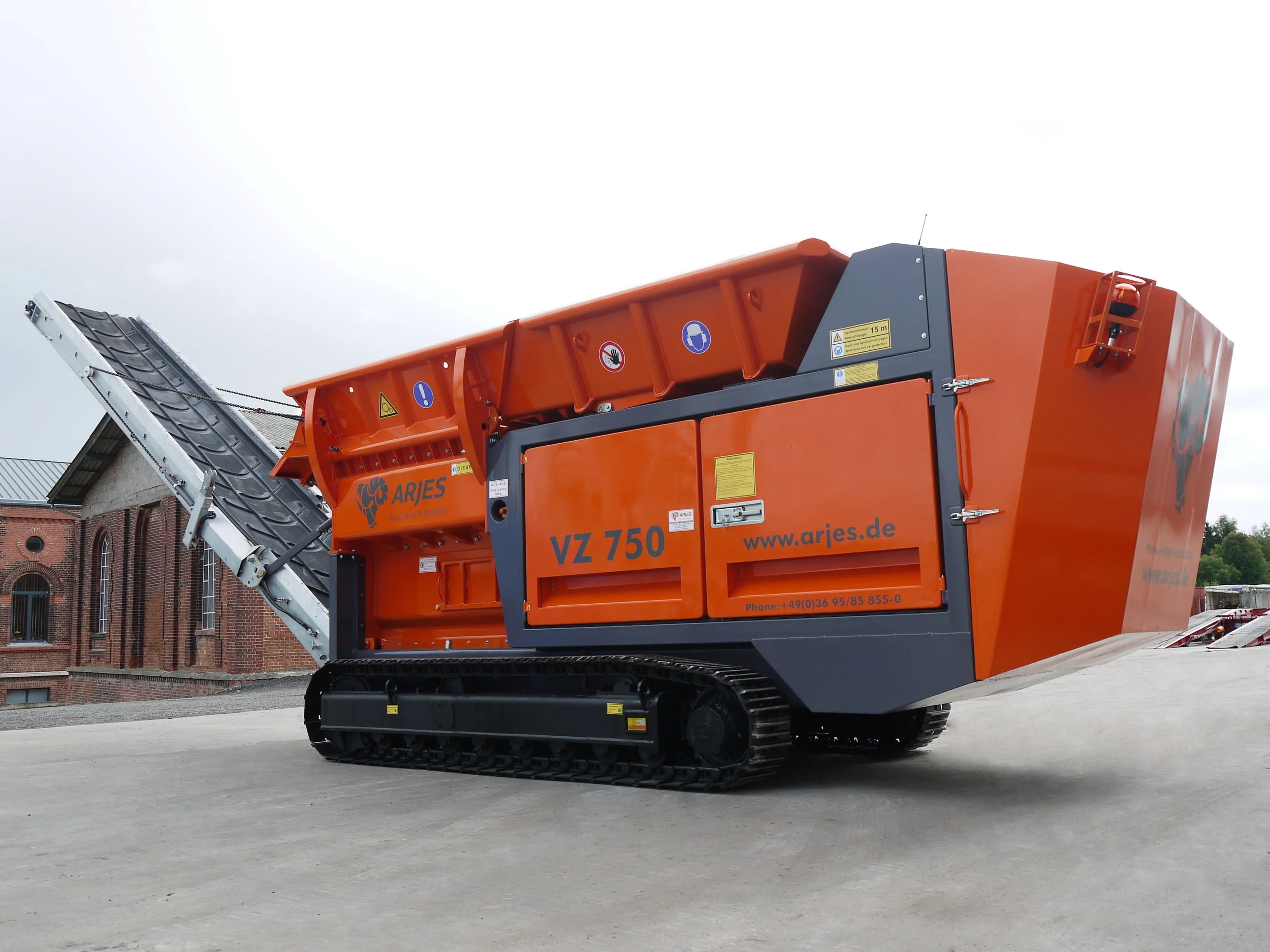

VZ 750 DK

Diesel Tracks (DK) - mobile and self propelled, for efficient relocation and use in rough terrain. Can be equipped with optional rubber track pads

VZ 750 DT

Diesel Trailer (DT) - installed on a common brand trailer system, this solution allows frequent relocation

VZ 750 E

Electric Drive (E) - for situations where special requirements for exhaust and noise emissions apply. Can also be custom built with remote power pack, shred chamber, infeed, and discharge

Videos

Featured

C&D, Waste Wood

750 D shredding waste wood

C&D, Waste Wood

Technical Data

Model	Performance (KW/HP)	Dimensions LxWxH (mm)	Shafts (mm)	Weight (kg)
VZ 750 D	235 kW (320 hp)	6,500 x 2,400 x 2,600	1,750	15,000
VZ 750 DK	235 kW (320 hp)	8,200 x 2,500 x 3,000	1,750	20,000
VZ 750 DT	235 kW (320 hp)	9,700 x 2,500 x 3,800	1,750	20,500
VZ 750 E	250 kW	7,800 x 2,400 x 2,900	1,750	16,000
